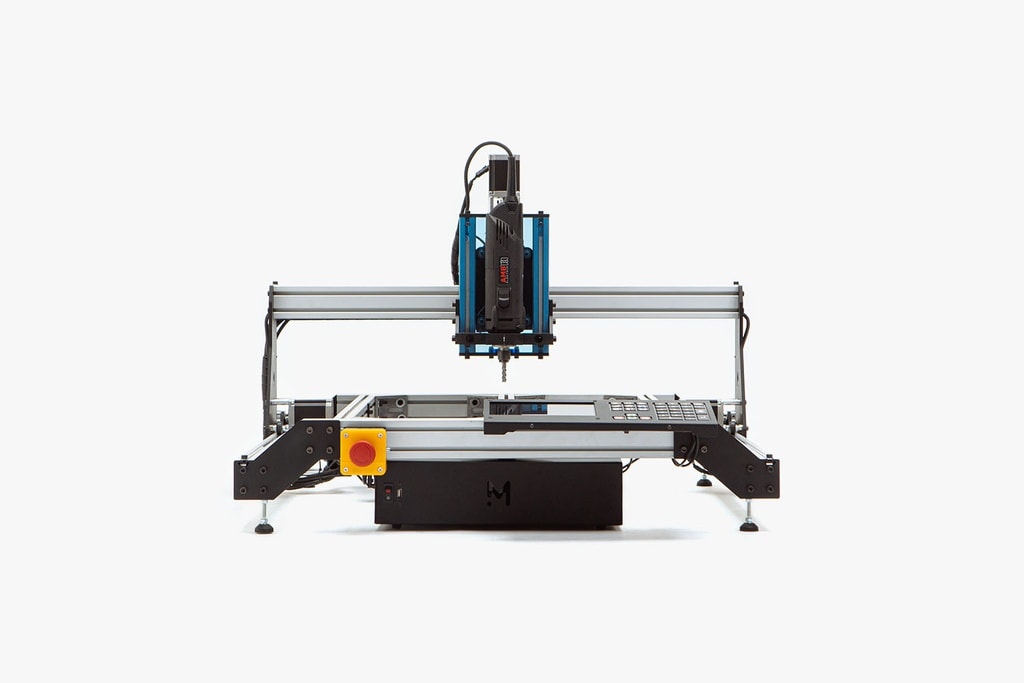

Evo
Product information
Description

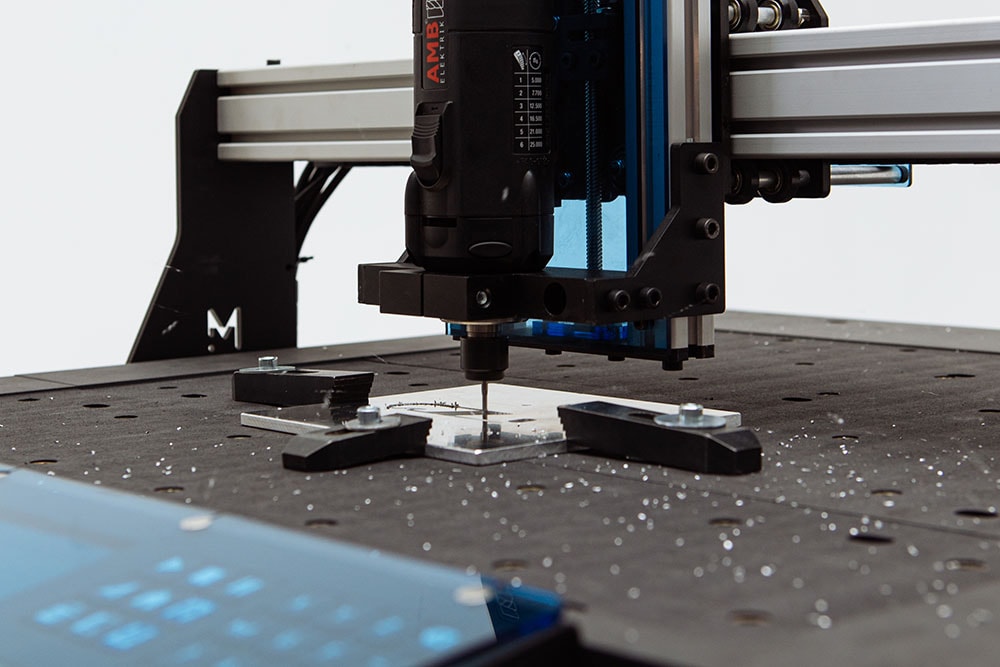

Evo is a versatile CNC milling machine that lets you explore different materials. Fast and easy to use, it's the ideal choice for hobbyists and occasional professionals.
Note: the spindle & add-ons are NOT included in the kit and must be selected separately.
Discover Evo on Video
This video covers everything you need to know, from how to operate the machine, to the available spindle power and important safety considerations. By the end of it, you'll have a much clearer understanding of the machine.
To go even further, you can access full product presentation of Evo.
If you're still lost in how to use a CNC machine, this is the way to go.
What They Say About Us
Technical Specifications
| Size & Weight | |
|---|---|
| Working Area | S - 630 x 630 mm M - 630 x 1030 mm L - 1030 x 1030 mm |
| Overall Size | S - 850 x 850 x 650 mm M - 850 x 1250 x 650 mm L - 1250 x 1250 x 650 mm |
| Z clearance height |
|
| Weight | S - 37 kg M - 42 kg L - 48 kg |
| Performance | |
| Positioning Accuracy | 0.1 mm |
| Travel speed max. | 20,000 mm/min |
| Cutting accuracy | 0.2 mm (this value highly depends on the tool and cutting parameters chosen by the operator) |
| Typical cutting parameters | In softwood, with a 6 mm 3 flutes carbide cutter:
|
| Compatible Spindles | AMB FME-1 1050W AMB FME-P 1400W DI |
| Power Consumption | 1x 230VAC (max. power: 200W without spindle) |
| Mechanics | |
| Structure | Steel plates (6mm) Aluminium profiles (30x60mm & 60x60mm) |

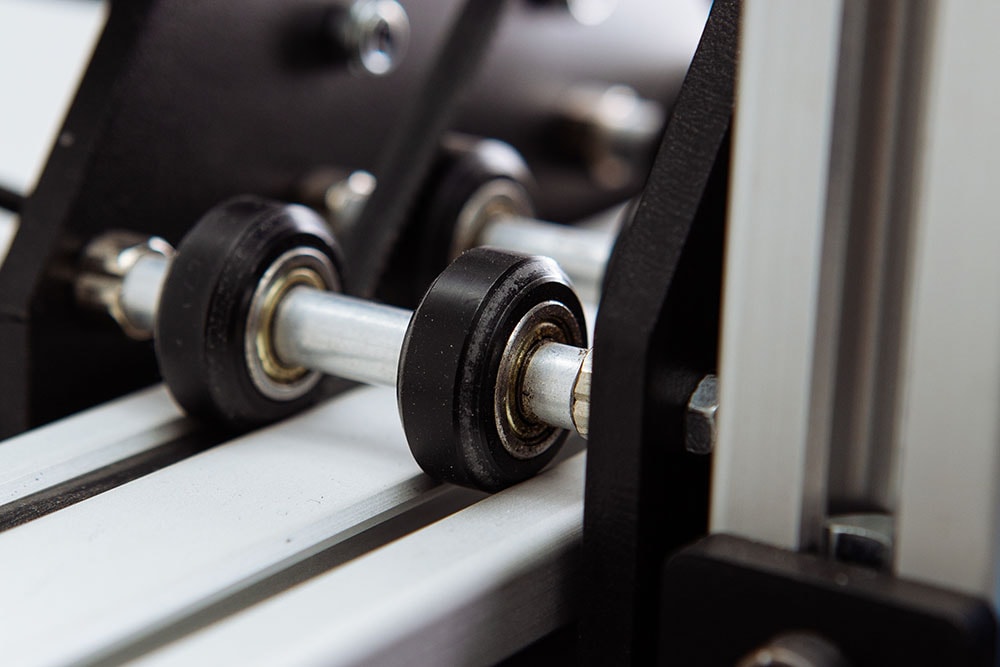

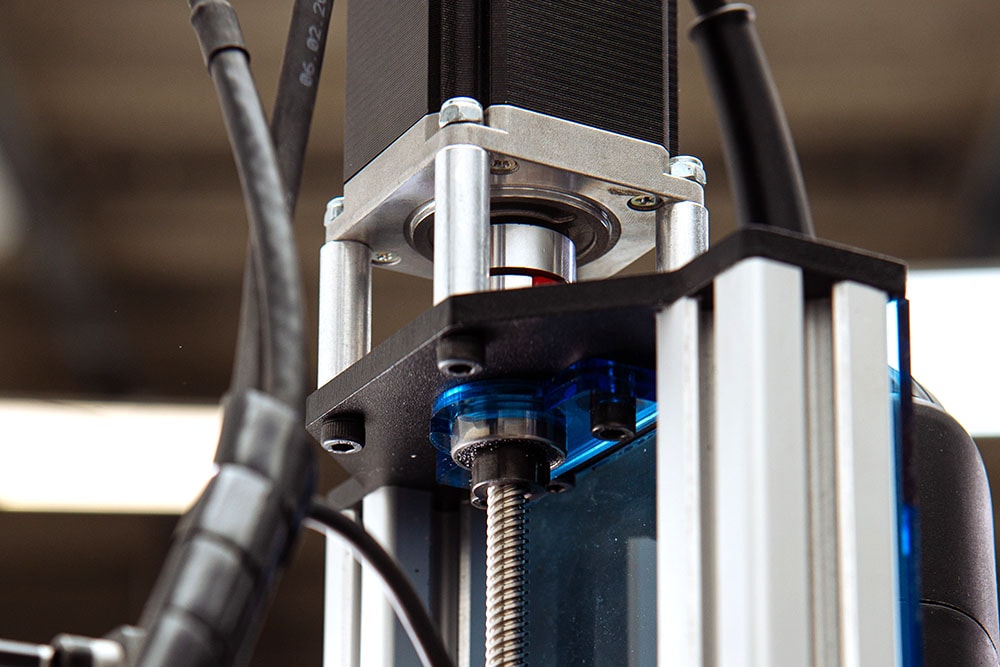

| Linear guide system | V-slot wheels |
| Drive System | X and Y-Axis
Z-Axis
|
| Electronics | |
| Motors | Nema23, 2A (4x) |
| Motor drivers | 24 VDC, 2.5 A Microstepping 1/32 |
| Embedded computer | Raspberry Pi 4 - 2 GB RAM |
| Ports | 3 USB ports 1 Ethernet port 1 HDMI port |
| Connectors | Motors and sensors - Neutrik XLR Inputs / Outputs - GX12 |
| Interface Unit | 7" TFT IPS capacitive touchscreen Custom Bluetooth keypad |
| Connectivity | WiFi (2.4 GHz and 5.0 GHz IEEE 802.11ac ) Bluetooth (5.0) Gigabit Ethernet |
| Limits Sensors | High-precision microswitch (4x) |

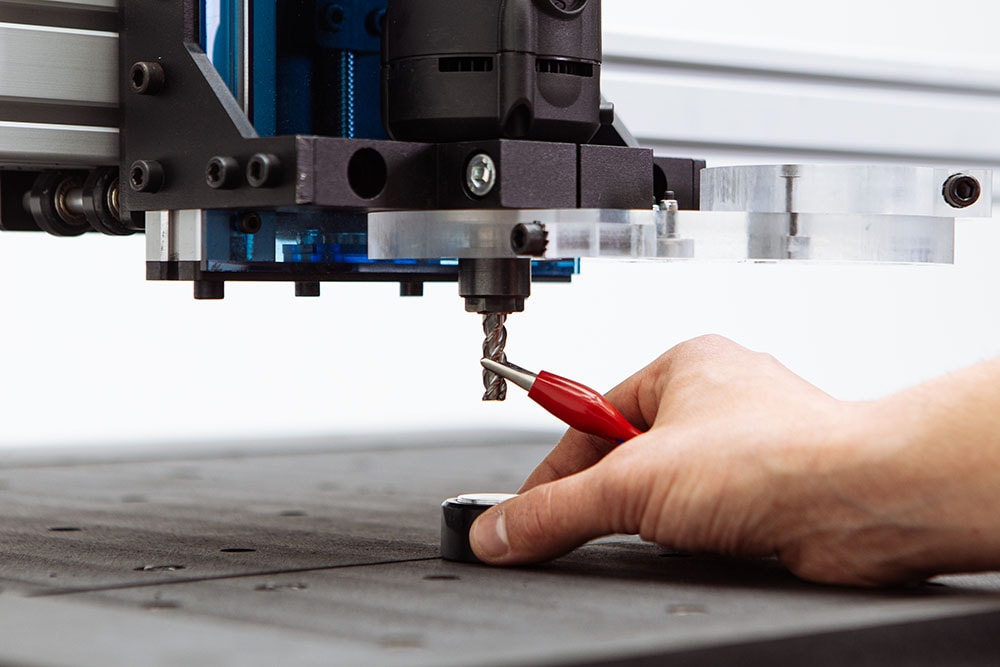

| Tool length sensor | Touch plate with crocodile clip |
| Controller | PlanetCNC Mk3/4 |
| Control Software | |
| PlanetCNC TNGv2 | Embedded G-code generator/editor Toolpath visualization Import toolpath from 2D files (dxf, png,...) Advanced motion interpolation Simulation mode Manual Data Input mode (MDI) Automatic homing and square gantry Automatic tool length measuring and probing Feed & speed override Customizable view, scripts and M-codes |
| CAM compatibility | Compatible with all CAM software available on the market (advising Fusion360) |
| Safety | |
| Spindle | DI spindles will automatically stop when an emergency stop button is pressed or a milling program is finished. This limits the time when a sharp endmill is spinning to a minimum.
DI spindles are optional products. |
| Enclosure | The enclosure offers a safe environment around the CNC in which nothing can enter while the CNC is running. The doors are monitored and their opening will automatically cause an emergency stop of the machine and DI Spindle.
The enclosure is an optional product. |
