Product information
from 11 093,00 €
13 422,53 € tax incl.
Description

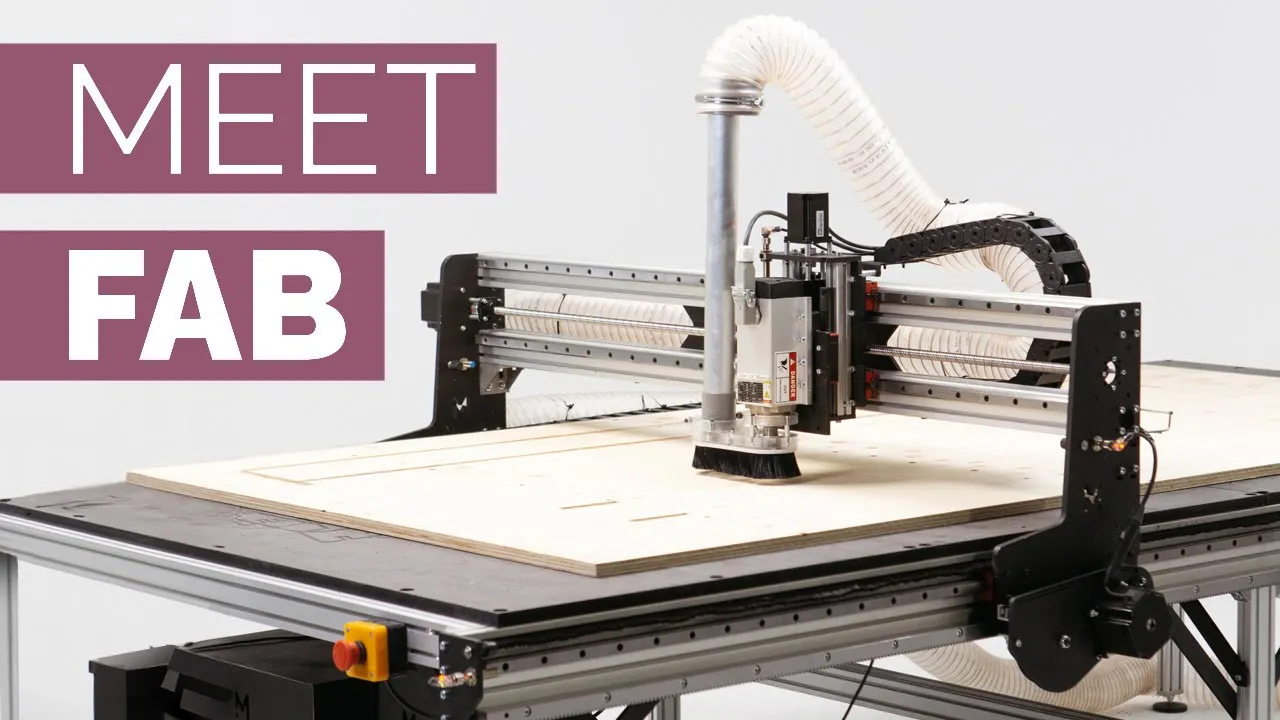

Fab is a large-format CNC milling machine to boost your production. It allows you to produce a wide range of materials every day at high speed and with precision.
Note: the spindle & accessories are NOT included in the kit and must be selected separately.
What They Say About Us
Technical Specifications
| Size & Weight | |
|---|---|
| Working Area | 1330 x 2700 mm |
| Overall Size | 1750 x 3150 x 1250 mm |
| Z clearance height |
|
| Weight | 180 kg |
| Performance | |
| Positioning Accuracy | X & Z-axis : ± 50 µm / 300 mm Y-axis: ±26 µm / 1000 mm |
| Travel speed max. | 25,000 mm/min |
| Cutting accuracy | 0.1 mm (this value highly depends on the tool and cutting parameters chosen by the operator) |
| Typical cutting parameters | In softwood, with a 6 mm 3 flutes carbide cutter:
|

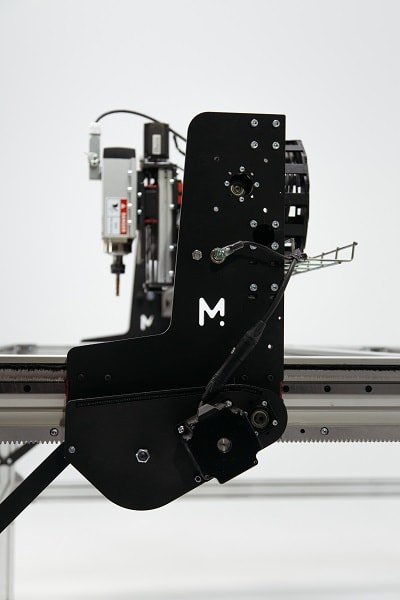

| Compatible Spindle | VFD 2,2kW air-cooled |
| Power Consumption | 1x 230VAC (max. power: 3.5 kW with spindle, +0,55 kW with dust collection) |
| Mechanics | |
| Structure | Steel plates (8 & 10mm) |

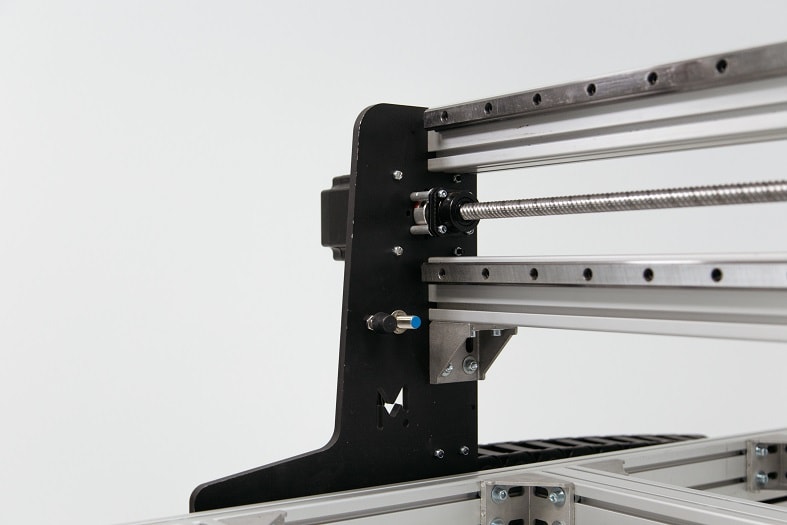

| Linear guide system | Double prismatic rail HGR20 |
| Drive System | X and Z-Axis
Y-Axis
|
| Electronics | |
| Motors | Nema34, 6 A, 4.5 Nm (X & Y) |
| Motor drivers | 32-bit DSP |
| Embedded computer | Raspberry Pi 4 - 2 GB RAM |
| Ports | 3 USB ports 1 Ethernet port 1 HDMI port |
| Connectors | Motors and sensors - Neutrik XLR Inputs / Outputs - GX12 |
| Interface Unit (not included) | 13.3" TFT IPS capacitive touchscreen |
| Connectivity | WiFi (2.4 GHz and 5.0 GHz IEEE 802.11ac ) Bluetooth (5.0) Gigabit Ethernet |
| Limits Sensors | Inductive sensors (6x) |
| Tool length sensor | Touch plate with crocodile clip |
| Controller | PlanetCNC Mk3/4 |
| Control Software | |
| PlanetCNC TNGv2 | Embedded G-code generator/editor Toolpath visualization Import toolpath from 2D files (dxf, png,...) Advanced motion interpolation Simulation mode Manual Data Input mode (MDI) Automatic homing and square gantry Automatic tool length measuring and probing Feed & speed override Customizable view, scripts and M-codes |
| CAM Compatibility | Compatible with all CAM software available on the market (advising Fusion360) |
| Safety | |
| Spindle | Controlled spindles will automatically stop when an emergency stop button is pressed or a milling program is finished. This limits the time when a sharp endmill is spinning to a minimum. |
