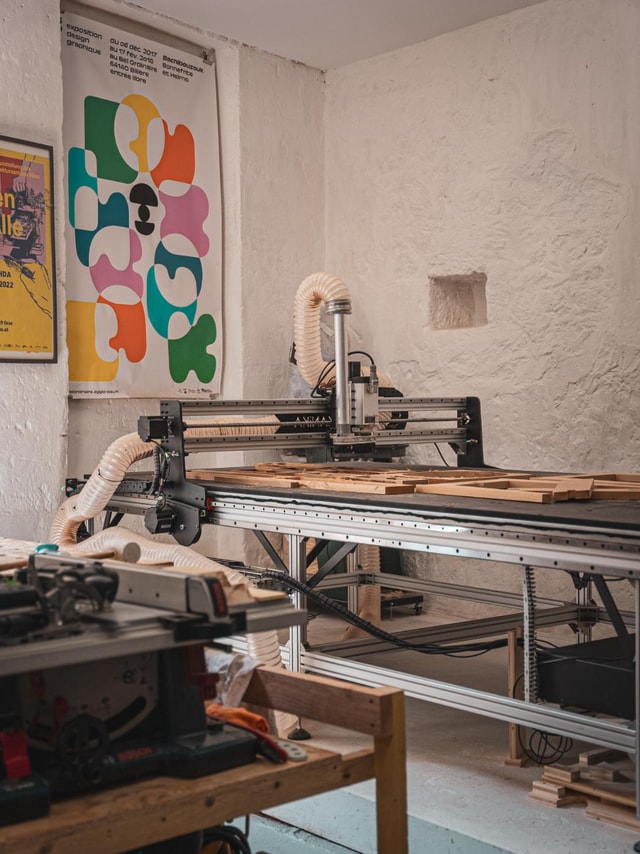

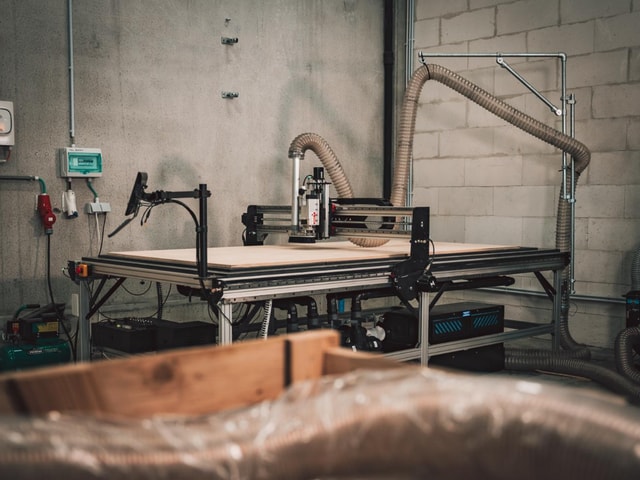

TAILLE & PERFORMANCE
MÉCANIQUE

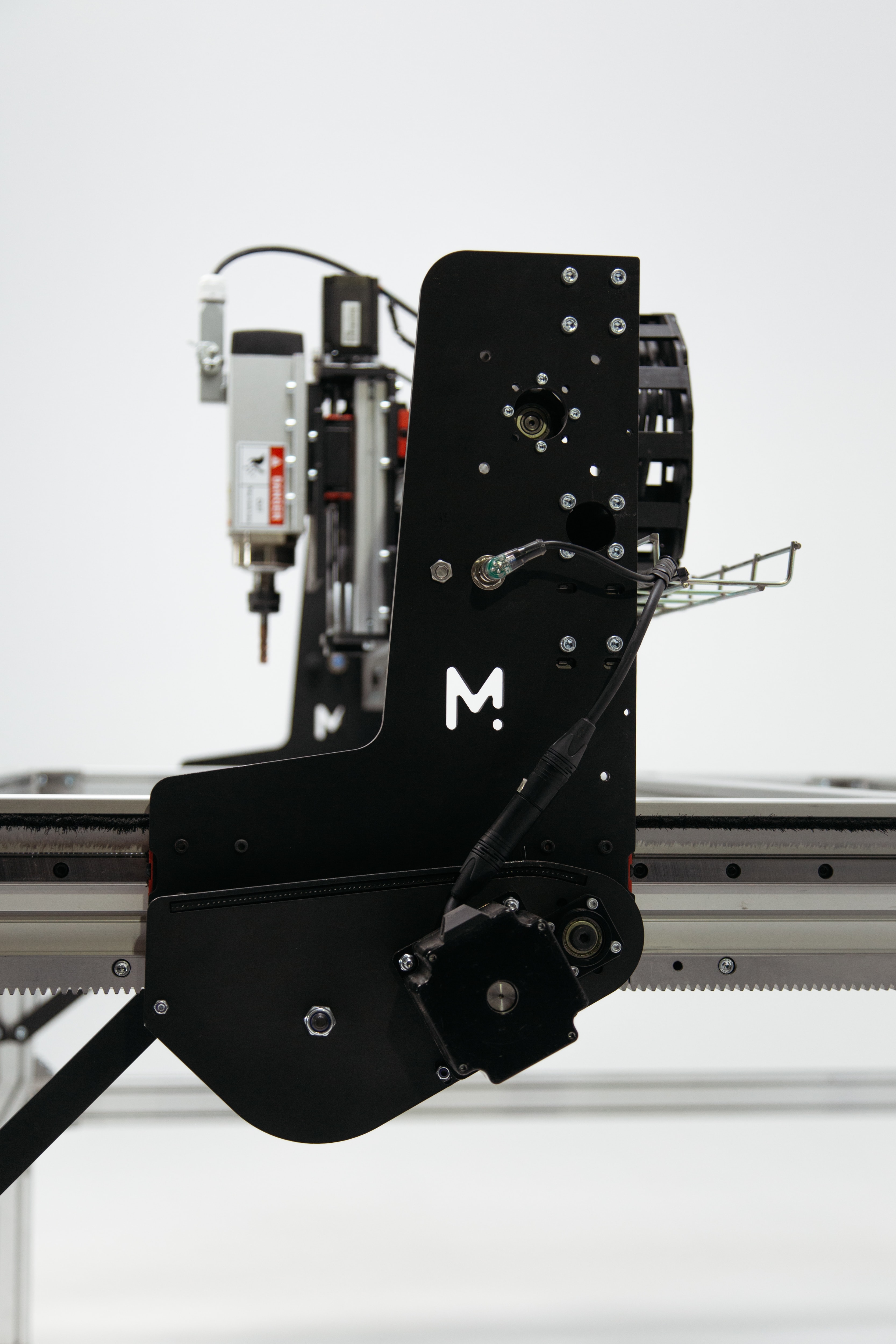

Structure |
- Steel plates (8 & 10mm) - Aluminium profiles (30x60mm & 60x60mm) |
Système de guidage linéaire |
Double rail prismatique HGR20 |
Système d'entrainement |
|

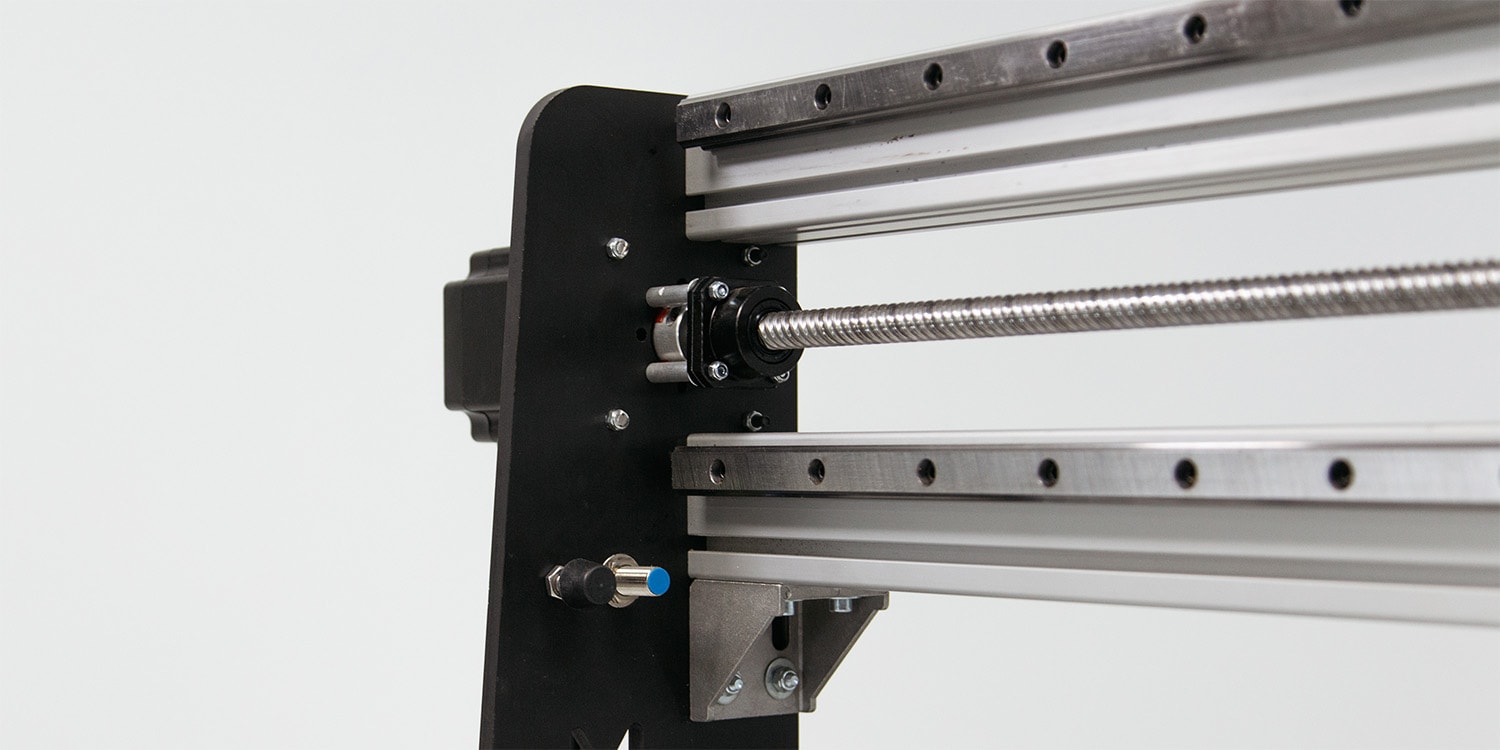

Axes X et Z | Vis-à-bille 16 mm±50 µm / 300 mm (C7) |

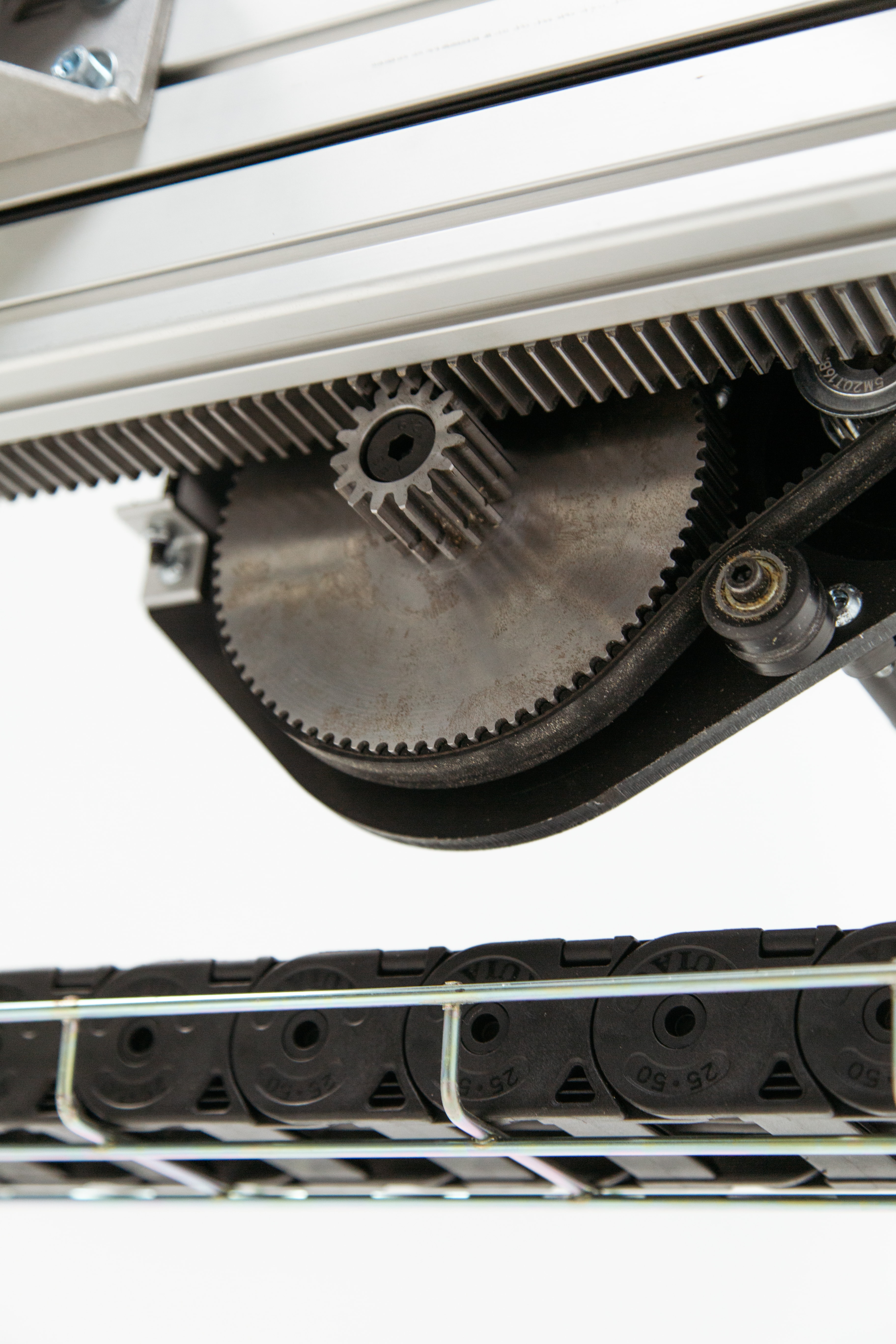

Axe Y | Mod 2 Rack and pinion ±26 µm / 1000 mm (DIN5 / Q5) |
ÉLECTRONiQUE
Motors
|
- Nema34, 6 A, 4.5 Nm (X & Y) - Nema23, 5 A, 2.2 Nm (Z) |
Système d'entraînement |
- 32-bit DSP- 72 VDC 8,4 A - Microstepping 1/32 - Contrôle de courant à l’arrêt - Coefficient de lissage de la vitesse (accélération/décélération) |
Ordinateur embarqué | Raspberry Pi 4B (2 Gb RAM) |
Ports | - 3 ports USB - 1 port Ethernet - 1 port HDMI |
Connecteurs | - Neutrik XLR (moteurs/senseurs) - GX12 (entrées/sorties) |

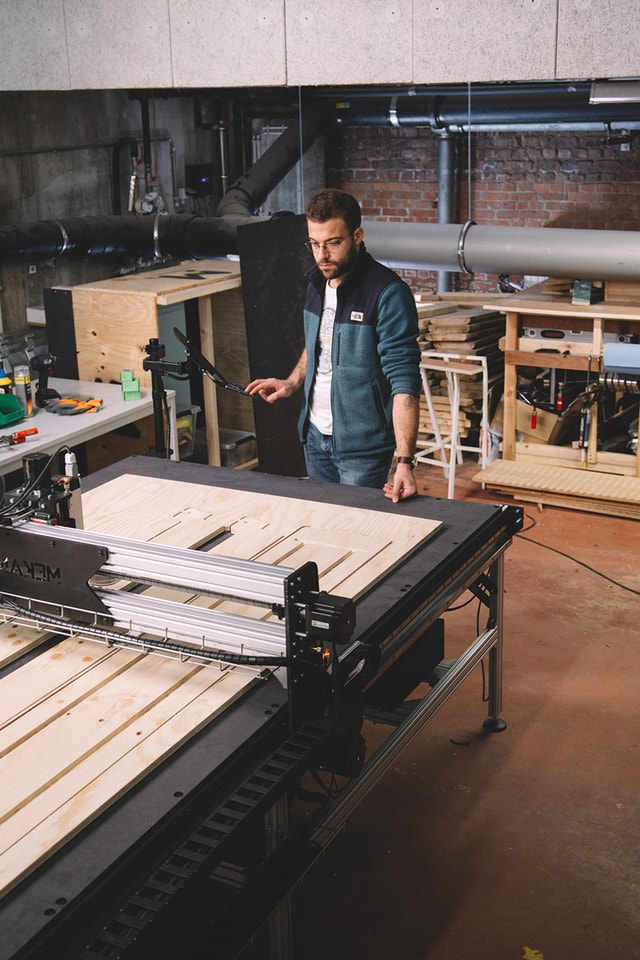

Interface Unit (not included) | Écran tactile capacitif de 13,3 pouces et clavier de commande mobile |
Connectivité | - WiFi (2.4 GHz and 5.0 GHz IEEE 802.11ac ) - Bluetooth (5.0) - Gigabit Ethernet |

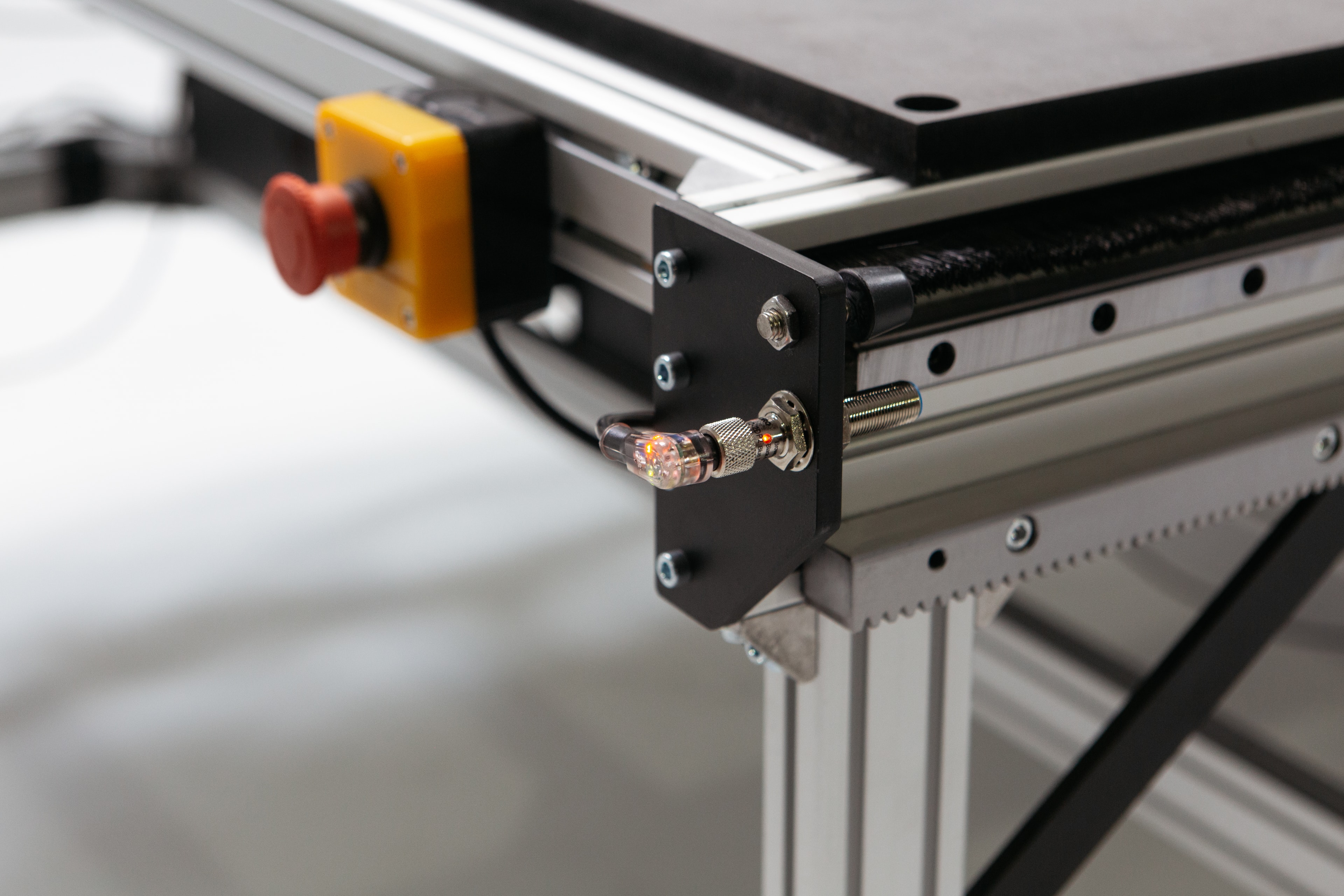

Capteurs de limite | Capteurs inductifs (6x) |
Capteur de longueur d'outil |
- Plaque tactile avec pince crocodile |
Controller
|
PlanetCNC Mk3/4 |
LOGICIEL DE CONTRÔLE
PlanetCNC TNGv2
|
- Embedded G-code generator/editor - Toolpath visualization - Import toolpath from 2D files (dxf, png,...) - Advanced motion interpolation - Simulation mode - Manual Data Input mode (MDI) - Automatic homing and square gantry - Automatic tool length measuring and probing - Feed & speed override - Customizable view, scripts and M-codes |
Compatibilité CAO | Compatible with all CAM software available on the market (advising Fusion360) |
