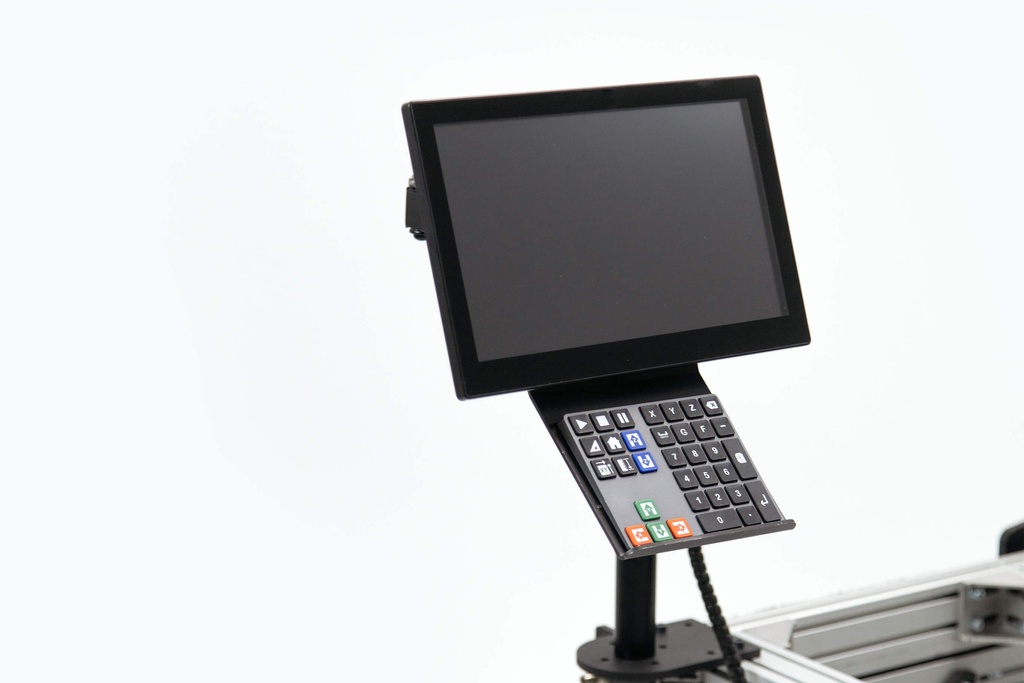

Expandable Touch Interface

https://tevarg-mekanika-odoo.odoo.com/web/image/product.template/4056/image_1920?unique=2c04eed

This ergonomic touch interface is the perfect add-on for comfortable and intuitive machine control.
CAUTION : this product feature a EU-plug. You'll need an adapter to use it in the UK/US.

487.60 € 487.6 EUR 487.60 € VAT Excluded

487.60 € VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    This kit is composed of:

    • a 13.3" touchscreen, with its HMDI and micro-USB cables.

    • a USB-A extension cable to easily plug your USB flash drive next to the screen.

    • a 12V power supply for the touchscreen (EU-plug).

    • a Mekanika custom wireless keyboard, with magnets for an extra grip on the steel support.

    • A USB-C charging cable for the keyboard.

    • a sturdy articulated arm that can be attached to any of our CNC machines.

    Screen13.3inch IPS screen,1920 x 1080 high resolution
    Touch panel
    		Toughened glass capacitive touch panel, 6H hardness
    StructureSteel structure, black paint
    HeightAdjustable from 0 - 44cm
    Range of motionFull rotation and adjustable depth
    Wireless keypad
    		Battery capacity: 110mAh
    Charging time：2 hours
    Continuous working time：50 hours
    Standby time：4 months
